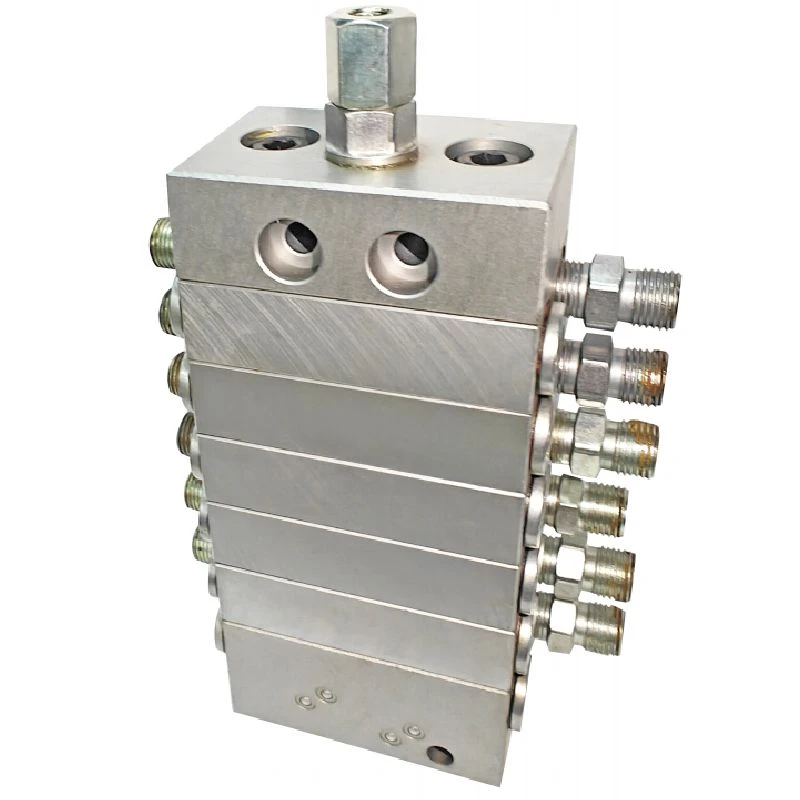

Plate-type Progressive Distributor

The QDV-P plate-type progressive distributor is assembled by stacking working plates with different displacement specifications to satisfy varied grease-delivery requirements for multiple lubrication points. Each complete unit consists of one inlet plate, one end plate (integrated with plunger), and a minimum of two intermediate plates, providing no less than 6 oil outlets.

Different output volumes can be easily achieved by configuring various working plates. Cycle indicators and sensors are available as optional accessories for operational monitoring. This unit is designed for dispensing fluid lubricants and grease, widely applied in mining equipment, mineral processing machinery, construction machinery and heavy-duty steel-industry facilities.

1.Flexible configurable output: Combine working plates of different displacements to match different lubrication-point oil-volume demands. The 160-type intermediate plate supports external displacement adjustment via metering screw plugs.

2.Visual inspection capability: Each indicator pin allows direct visual check of operating status. Multiple cycle monitoring options are selectable: travel switch, proximity switch, magnetic indicator or mechanical indicator rod.

3.Modular stacked-plate structure: Easy to disassemble for inspection, maintenance or component replacement. Each outlet fitting integrates a built-in check valve.

4.Oil-port merging function: 2, 3 or 4 outlets can be merged to realize larger single-port delivery volume by removing steel balls / set screws and applying joint oil blocks.

1.High-flexibility displacement matching: Multiple fixed-displacement plates plus adjustable-volume plates, together with multi-port merging technology, realize diversified flow combinations without custom-made distributors.

2.Multiple monitoring solutions: Offer mechanical visual indication and several electrical sensor options, supporting both on-site manual inspection and remote electrical system monitoring.

3.Convenient modular maintenance: Stacked-plate construction enables individual-plate replacement. No need to replace the whole distributor when partial plates are damaged, lowering spare-part cost.

4.Strong adaptability for heavy-duty conditions: Wide temperature range and compatibility with common industrial grease grades, well-suited for mining, port and construction machinery operating under harsh working conditions.

5.Complete application guidance: Clear rules for lubricant compatibility, forbidden solid additives, and detailed fault-elimination guidance to reduce misuse-caused failures.
