Introduction
The WDB-M series electric lubrication pump is a high-performance, intelligent automatic lubrication equipment. This product adopts an advanced mechatronics design and serves as a reliable auto lube pump, specially developed for the centralized lubrication system of various industrial equipment, construction machinery, and heavy-duty machinery. It effectively improves equipment lubrication efficiency and extends the service life of key components.
Technical Data
|
Description |
Auto Lube Pump |
||
|
Class of Protection |
IP65 |
||
|
Operating Voltage |
DC24V/AC220V/AC380V |
||
|
Reservoir Capacity |
2L |
4L |
6L |
|
No. of Outlets |
1 - 4 |
||
|
Operating Pressure |
250bar |
||
|

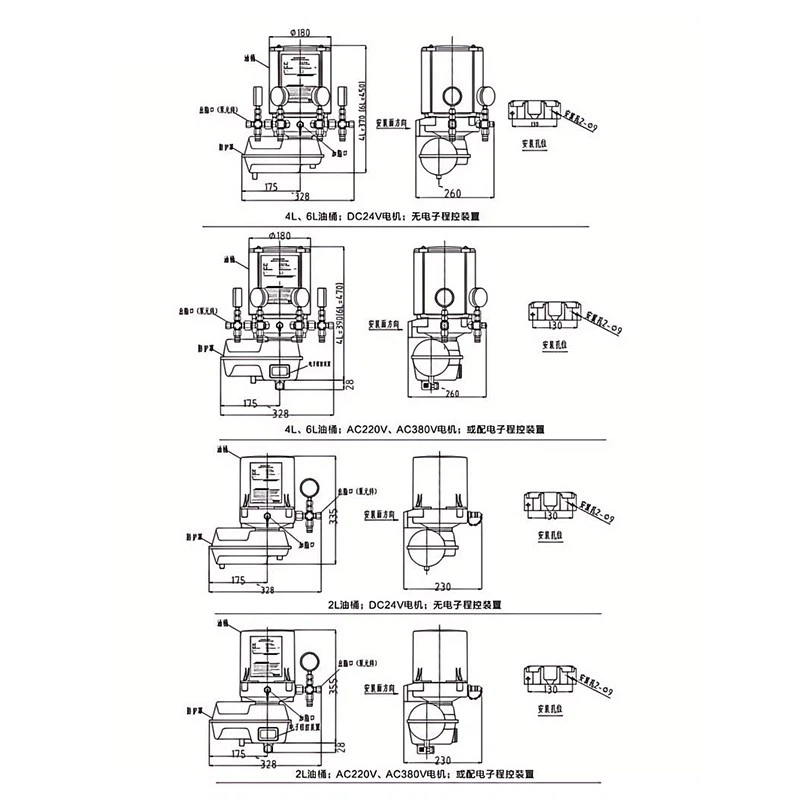

Dimensions (HxWxL) mm |
370×228.36×328 |
||
|
Operating temperature |
-40℃~80℃ |
||
|
Displacement |
1.2,1.8,2.9,4.2ml/min |
||
Installation Guide
Features/Equipment characteristics
a.Pump components modular, according to the actual conditions of a variety of combinations, a single pump component failure does not affect other points of grease
b.Transparent resin oil drum for easy observation of oil storage
c.The number of fat outlets is 1 to 6
d.The pump element of each grease outlet is equipped with safety relief valve and pressure gauge to monitor the lubrication point and the working condition of the lubrication pump at any time
e.Lubrication pump fully sealed structure, suitable for outdoor conditions, with waterproof, dust-proof functions, suitable for forging, engineering machinery, rubber and plastic, vehicle chassis and other equipment
f.Optional built-in program controller
g.Each outlet can be directly connected to the lubrication point, or can be independently connected to the progressive distributor
Our Advantages
a.Outstanding position in the industry:
National high-tech enterprises;
The market share has been in the top three for five consecutive years.
b.Benchmark customer recognition:
Service Sany Heavy Industry, Yutong and other leading enterprises;
Products exported to many countries and regions;
Preferred brand for key engineering projects.
FAQ
Q: How to establish an efficient lubrication management system?
A: Formulate lubrication standards, select suitable equipment, digital management.
Q: What economic benefits can lubrication management bring?
A: Reduce equipment failures, extend equipment life, and reduce energy consumption.
Q: How to evaluate the cost performance of lubricating oils?
A: Comprehensive cost calculation, performance testing, selection of supplier brands to provide technical support (such as Weidun ).
