Introduction

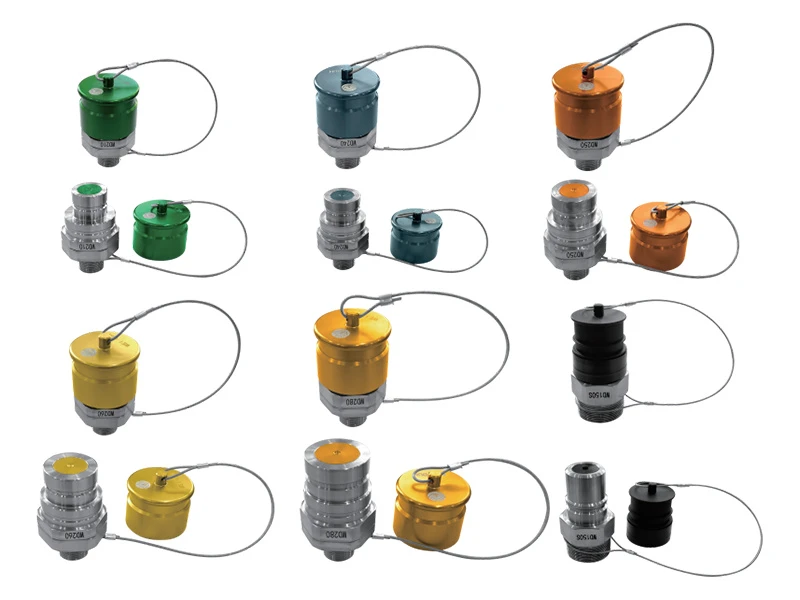

WEIDUN quick-disconnect fueling joints consist of two main types: U-end fueling joints and T-end fueling joints. All models adopt a uniform 3/4 Inch NPT thread standard. Different colors are applied to distinguish fluid media, paired with exclusive keyed structures. Joints of different colors within the same series are non-interchangeable, which structurally avoids cross-contamination of oils and fluids. They are suitable for crankcase refueling applications of various mechanical equipment.
Technical Data
|
General Parameter Items |
Parameter Specifications |
|
Working Pressure |
103 Bar |
|
Threads Nozzle Threads |
3/4 inch NPT |
|
Receiver Threads |
3/4 inch NPT |
|
Construction |
Constructed of anodized aluminum and nickel-plated steel, featuring color coding and a keyed design to prevent cross-contamination. |
FUELING JOINT U-END
|
Model |
Description |
Color |
|
WDN210 |
3/4 Inch NPT FUELING JOINT U-END |
Green |
|

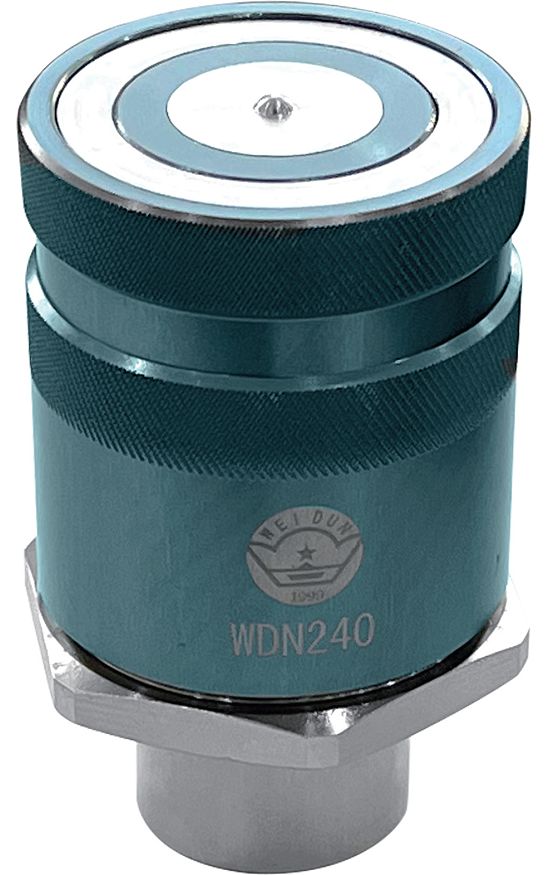

WDN240 |
3/4 Inch NPT FUELING JOINT U-END |
Bluish-gray |
|
WDN250 |
3/4 Inch NPT FUELING JOINT U-END |
Orange |
|
WDN260 |
3/4 Inch NPT FUELING JOINT U-END |
Yellow |
|
WDN280 |
3/4 Inch NPT FUELING JOINT U-END |
Brown |
|
WET290 |
3/4 Inch NPT FUELING JOINT U-END |
Black |
FUELING JOINT T-END
|
Model |
Description |
Color |
|
WD210 |
3/4 Inch NPT FUELING JOINT T-END |
Green |
|
WD240 |
3/4 Inch NPT FUELING JOINT T-END |
Bluish-gray |
|
WD250 |
3/4 Inch NPT FUELING JOINT T-END |
Orange |
|
WD260 |
3/4 Inch NPT FUELING JOINT T-END |
Yellow |
|
WD280 |
3/4 Inch NPT FUELING JOINT T-END |
Brown |
|
WD150S |
3/4 Inch NPT FUELING JOINT T-END |
Black |
Features/Equipment Characteristics
- High pressure resistance: Rated operating pressure reaches 103 Bar, ideal for high-pressure refueling scenarios.
- Anti-contamination design: Dual anti-misassembly solution combining color coding and keyed structure; joints for different fluids cannot be swapped.
- Durable materials: Constructed with anodized aluminum and nickel-plated steel, featuring rust resistance and outstanding corrosion resistance against various fluids.
Our Advantages
- Standardized connection: The whole series is equipped with uniform 3/4-inch NPT threads for excellent universality.
- Complete color options: Available in green, bluish-gray, orange, yellow, brown and black to meet classification requirements for multiple fluids.
FAQ
Q1：What material are the fueling joints made of?
A：They are made of anodized aluminum and nickel-plated steel, rust-proof and resistant to fluid corrosion.
Q2：Can fueling joints of different colors be used interchangeably?
A：No. The product adopts color coding and keyed structure. Joints in different colors are non-interchangeable to avoid fluid cross-contamination and protect your equipment.
Q3：What thread standard does the series adopt?
A：All models adopt uniform 3/4 inch NPT thread for both nozzle and receiver ends, with strong versatility.
Q4：Where are these fueling joints widely applied?
A：They are specially designed for crankcase refueling of various mechanical equipment.
