Introduction

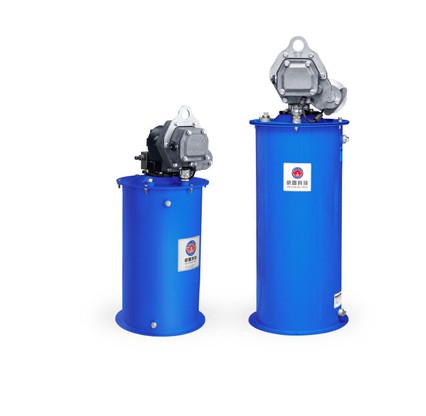

WEIDUN VDS electric lubrication pump serve automatic lubrication and bulk grease transfer for mining, metallurgy, port and construction machinery. Durable electric & hydraulic models fit various harsh working conditions.
- No-Follower Low-Level Sensor Auto low-grease alarm with self-reset after refilling, no follower plate needed.
- IP65 Wide-Temp Housing Stable operation from -40°C to 80°C, dustproof & waterproof for outdoor heavy-duty sites.
- Multi-Capacity Steel Reservoir 35L/50L/200L tanks with universal bolt pattern for easy installation.
- Ground Direct Fill & Vent Design Convenient bottom refilling and fast air purging without messy operation.
- Modular Custom Options Optional solenoid relief valve, pressure gauge, pressure switch and dual level sensors.
- Built-In Full Electrical Protection Overcurrent, stall, overheat & voltage protection; fault flash codes for quick troubleshooting.
Technical Data
|
Description |
VDS Electric Lubrication Pump |
|||
|
Working Voltage |
24VDC |
|||
|
Class of protection |
IP65 |
|||
|
Drum Capacity |
35L |
50L |
200L |
|
|
Rated Pressure |
240bar |
340bar |
||
|
Working temperature |
-40℃-80℃ |
|||
|
Displacement |
5.6ml/cy |
|||
|
Outlet Port Connection Thread |
NPT3/8(Female) |
|||
|
Lubricant |
NLGI 0#-2# |
|||
Product Comparison
|
SPECIFICATION |
GRACO-HF Models |
GRACO-HP Models |
WEIDUN-30L |
WEIDUN-45L |
|
Class of protection |
IP69K |
IP65 |
||
|
Lubricant |
NLGI 0#-2# |
NLGI 0#-2# |
||
|
Working temperature |
-10 to +65℃ |
-40 to +65℃ |
-10 to +65℃ |
-40 to +80℃ |
|
Maximum outlet pressure |
241bar |
344bar |
240bar |
340bar |
|
Displacement |
24.6-574ml/min |
24.6-295ml/min |
5.6ml/rev |
5.6ml/rev |
|
Drum capacity |
30L |
45L |
35L |
50L |
Features/Equipment Characteristics
- Multiple fault code indicators: It covers overcurrent, rotor lock, voltage abnormality, motor overheating, missing sensor and cable failure. The red LED flashes at different frequencies to indicate specific faults for fast troubleshooting.
- Comprehensive liquid level monitoring options: High-level, low-level and dual high/low level sensors are available with multiple wiring connectors. Pressure gauges and pressure switches can be additionally installed.
- Two optional pressure ratings: Relief pressure of 240 bar and 340 bar. An optional solenoid relief valve is available to meet different system pressure requirements.
Our Advantages
a. Intelligent Production Management
The workshop uses a digital management system to monitor production and equipment status in real time, achieving efficient, transparent, and traceable manufacturing.
b. Flexible Production Capacity
Our scientifically arranged workshop supports stable mass production while also responding quickly to flexible orders for small batches and varied specifications.
c. Rapid Response Service
We provide fast, full-process support from technical selection to after-sales service, committed to being a reliable long-term partner for our customers.
FAQ
Q1: The green LED does not light up and the pump fails to run after power-on. What should I check?
A1: Focus on three points: 1. Reversed or loose wiring; 2. Mismatched or blown fuse; 3. The upper lubrication controller is switched off. Fix the wiring, replace the correct fuse and activate the lubrication cycle to restore operation.
Q2: The motor runs normally but no grease discharges from the outlet. How to solve this?
A2: 1. Refill grease if the reservoir level is too low; 2. Open the top overflow port and fill grease to purge trapped air inside the pump and pipelines; 3. Replace all sealing kits if worn seals cause internal leakage; 4. Replace the reservoir if it is damaged and leaking.
Q3: What precautions should be taken when operating in low-temperature environments?
A3: When ambient temperature drops below -10°C, start the pump at a low speed of 10~15 rpm. Special low-temperature grease must be used below 0°C to avoid grease solidification, excessive pump load and overcurrent protection activation.
