WDS-I Electric Lubrication Pump + QDV Progressive Distributors For Cotton Harvesters

Cotton pickers operate nonstop in extreme field conditions: heavy cotton lint dust, muddy farmland, wide temperature swings (-40°C to 75°C), and dozens of hard-to-reach friction points including high-speed spindles, picking head gearboxes, chassis hinges, drive chains and delivery augers. Traditional manual grease maintenance brings severe drawbacks:

1. Operators skip lubrication points due to tight harvest schedules, causing spindle dry friction, rapid wear and costly breakdowns during peak picking season;
2. Uneven grease supply-some points get excess grease waste while others suffer insufficient lubrication;
3. No early warning for blocked pipelines or empty grease tanks; operators can only detect failures after components are damaged;
4. Open lubrication ports easily clog with cotton fiber and fine dust, leading to system shutdowns.

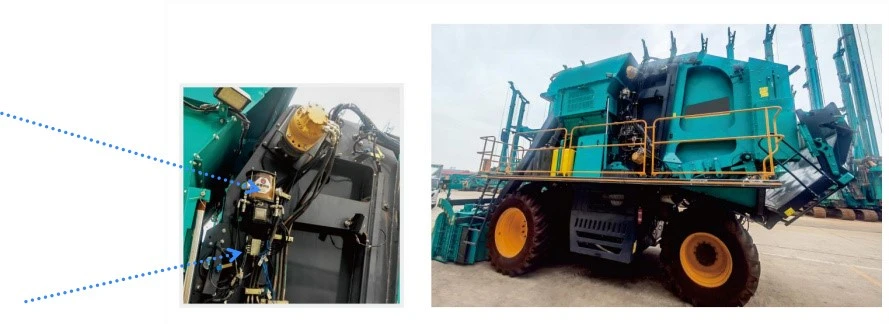

We equip self-propelled cotton harvesters with DC24V WDS-I piston electric lubrication pumps paired with QDV progressive distributors to build a fully automatic centralized grease supply system.

WDS-I Main Lubrication Pump

• IP65 fully sealed housing blocks cotton dust, rain and mud, stable for all-day outdoor field work;
• 1–5 oil outlets optional, matched with multi-stage QDV distributors for 30–80 lubrication points on 4/6-row cotton pickers;
• Built-in programmable controller to independently set lubrication run time (6s–99.9min) and interval cycle (6min–99.9h), matching long-hour continuous picking cycles;
• Max working pressure 35MPa, enough to deliver grease to remote picking head spindles via long-distance high-pressure hoses;
• Integrated low-oil-level sensor, pipeline blockage monitoring, motor overload & voltage protection; fault codes displayed on panel for quick troubleshooting; power failure data backup resumes lubrication after power recovery;
• Optional 2L–15L grease drum with grease press plate, preventing grease caking under dusty, low-temperature environments; compatible with 0#~2# agricultural grease.

QDV Progressive Distributors (Core Distribution Module) QDV progressive distributors work in sequence: internal pistons act one after another to deliver fixed, precise grease volume to every spindle, gear and pivot point, eliminating uneven lubrication.

• Visible stroke indicator for real-time system running status check;
• Built-in proximity switch feeds blockage signal back to WDS-I controller; once any lubrication point clogs, the pump triggers an alarm instantly to avoid dry wear;
• Compact modular design, easy to mount inside narrow picking head compartments; dust-proof valve structure resists cotton fiber contamination;
• Multiple outlet flow options to match different load parts (high-flow for spindles, low-flow for chassis hinges).

1. All-Weather Dust & Moisture Resistance WDS-I IP65 sealed pump and fully enclosed QDV distributors stop cotton lint, soil and rainwater from entering the lubrication circuit, drastically reducing pipeline clogging failures common in cotton fields.

2. Intelligent Timed Automatic Lubrication No manual greasing required. The system automatically feeds precise grease during machine operation, ensuring spindles and high-speed gears get continuous lubrication without human intervention. The forced start button supports supplementary lubrication before heavy-load picking tasks.

3. Full-Cycle Fault Monitoring & Early Alarm QDV blockage signal + WDS-I low oil level dual monitoring system. Operators see fault codes on the control panel to locate blocked lines or empty grease tanks before component damage occurs, cutting unplanned downtime during harvest peaks.

4. Modular Customization & Easy On-Site Maintenance

• Configure pump outlet quantity, grease tank volume and QDV distributor outlet count based on 2/4/6-row cotton picker models;
• WDS-I pump piston and check valve assemblies are easy to disassemble and clean on farm sites; matched paired parts guarantee stable pressure output;
• QDV distributors support single outlet replacement without disassembling the whole system, lowering maintenance costs.

5.Cost & Efficiency Improvements

• Eliminate daily manual lubrication labor (40+ minutes per machine daily);
• Spindle and picking head wear failure rate reduced by over 70%;
• Precise grease distribution cuts grease consumption by 35% vs manual greasing;
• Extend service life of core picking components by more than 40%.

A large cotton farm in Central Asia retrofitted 12 sets of 4-row self-propelled cotton pickers with WDS-I + QDV lubrication systems for one full harvest season:

• Zero sudden breakdowns caused by insufficient lubrication during peak picking;
• Annual spindle replacement and gear maintenance costs cut by 65%;
• Grease waste from over-lubrication completely eliminated;
• Operators no longer need to pause harvesting for routine greasing, improving daily picking output by 12%.

The matched WDS-I Electric Lubrication Pump and QDV progressive distributor system solves the core lubrication pain points of cotton harvesters: dust clogging, uneven grease supply, unmonitored dry friction and high maintenance labor. It is a reliable, cost-effective centralized lubrication upgrade for all types of self-propelled and tractor-mounted cotton picking equipment, widely applicable to global cotton planting regions.

Contact us for customized multi-point lubrication system design for your cotton harvester fleet.
